Wall Station Assembly Instructions

Before you Begin

Tools Required (Not Included)

Electric Hand Drill
3/8" Magnetic Hex Driver Bit
Level
Stud Finder
Tape Measure
Socket and Wrench Set

Parts List

Qty	Part
6	#14 x 3” Lag Bolt
2	Toggle Anchor w/Machine Screws
2	1/2” Spring Lock Washer
2	3/8”-16 x 1” Truss Head Screw
2	Standard Washer
2	3/8”-16 x 3/4” Truss Head Screw
2	Hanging Rod
1	Mounting Bracket
1	Station Board

Assembly Instructions

Step 01

Use a stud finder to locate 2 adjacent studs in the wall.

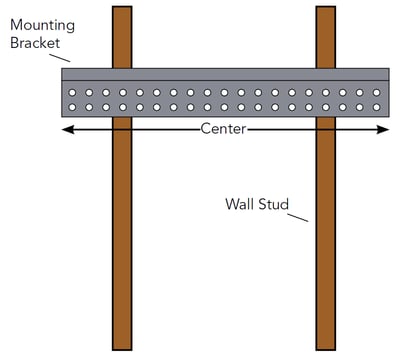

Center the Mounting Bracket to the studs and mount the Mounting Bracket to the wall.

Station must be secured to studs. Insecure Mounting may cause equipment failure, damage, or bodily injury.

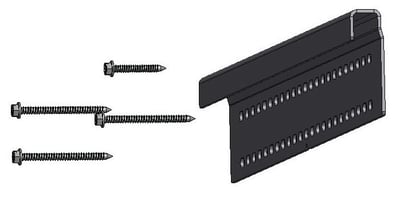

For Wood Studs: For Wood Studs: Attach using (4) #14 x 3” Lag Bolts. Ensure
bolts are screwing into wood framing.

For Metal Studs: High-strength toggle anchors have been provided with philips head machine screws. Follow the instructions in anchor packaging.

Ensure anchors are seated firmly into the metal studs.

Step 02

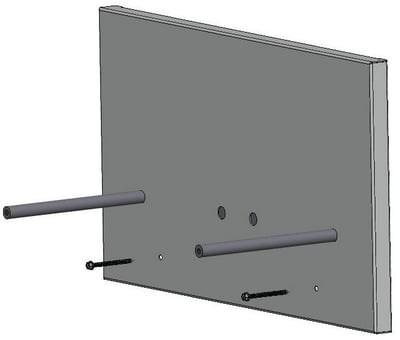

Attach the mat hanging rods to the face of the Station Board. Insert the hanging rod into the face of the board and attachfrom the back.

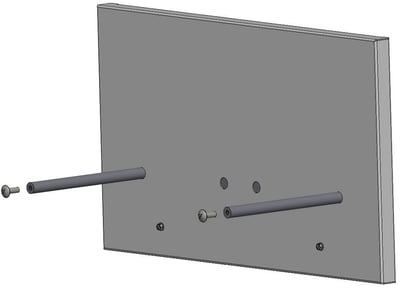

Each of the rods will attach with (1) 3/8”-16 X 1” long Truss Head Screw and (1) spring lock washer.

Fully tighten.

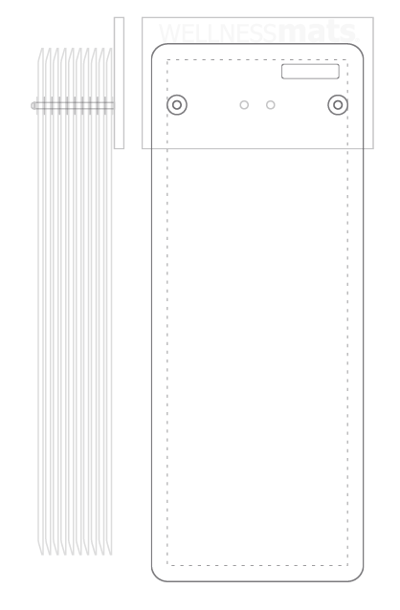

Use the Outermost Holes for FitnessMats and the Innermost Holes for MobileMats

Step 03

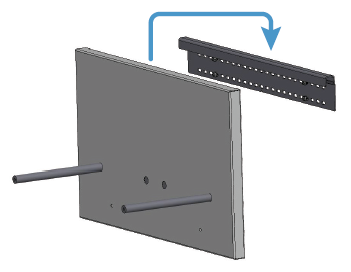

Carefully lift the Station Board onto the wall bracket. Lift the board against the wall and slightly higher than the bracket. Lower the board straight down so it hooks into the top of the
bracket.

Before letting go, be sure the board is hooked.

Step 04

Finish attaching to the wall using the Station Board’s lower mounting holes.

You many need to mark holes, remove the board and pre-drill/install hardware as necessary as was done during Step 1.

Step 05

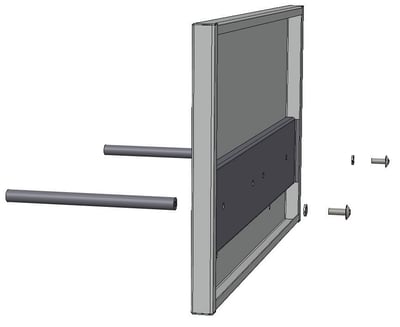

Insert (1) 3/8”-16 X 3/4” long Truss Head Screws and washer spacer into the ends of the mat hanging rods.
