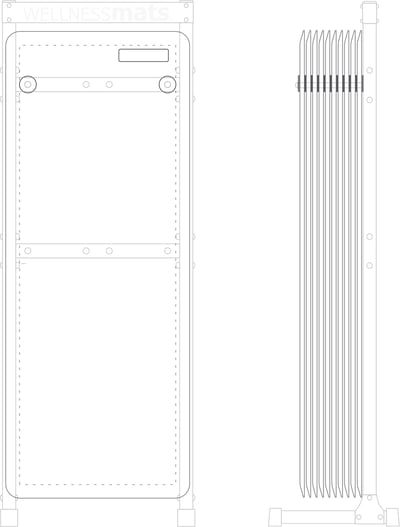

Single-Sided Station Assembly Instructions

Before you Begin

Tools Required

Allen Key (Included)

Phillips Head Screwdriver (Not Included)

Parts List

Qty	Part
2	1/2”-13 x 1” Socket Head Cap Screw
2	1/2” Spring Lock Washer
12	1/4”-20 x 3/4” Truss Head Screw
8	1/4”-20 x 1/2” Thread Cutting Screw
2	3/8” x 1” Socket Head Cap Screw
4	3/8”-16 x 2-1/2” Truss Head Screw
2	3/8”-16 x 3/4” Truss Head Screw
8	Nylock Nut
4	Standard Washer
2	Hanging Rod
4	Side Gusset Plates
2	Head Cap
4	Foot Cap
2	Base Tube
2	Upright Tube
2	Sign Bar
2	Cross Support

Assembly Instructions

Step 01

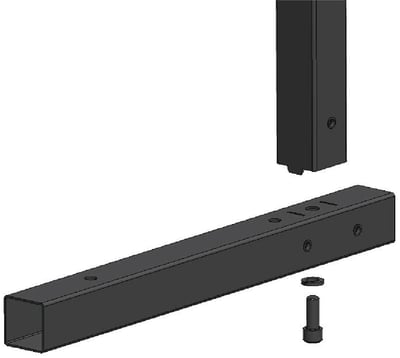

Insert the upright into the corresponding slots on the base tube. Once inserted, thread in (1) 1/2”-13 x 1” socket head screw and lock washer.

Optionally, apply a couple drops of thread lock on the screw. Do not fully tighten.

Repeat for other side.

Step 02

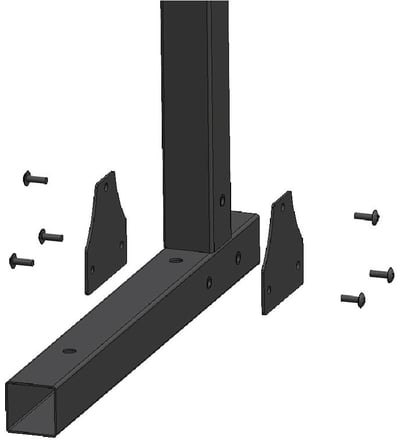

Attach the side gusset plates to the upright/base assembly. Use (6) 1/4-20 x 3/4” Philips truss head screws, three on each side.

Do not fully tighten. Go back to Step 01 and fully tighten, then fully tighten the screws in Step 02.

Repeat for other side.

Step 03

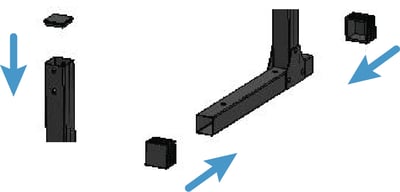

Install the caps on the end of the upright and base tubes.

Step 04

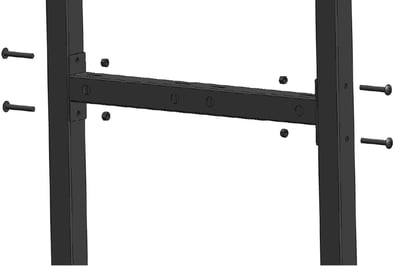

Bolt the cross supports in joining the two uprights using (4) 3/8”-16 x 2-1/2” philips truss head screws and (4) nylock nuts.

Do this for both cross supports.

Do not fully tighten.

Step 05

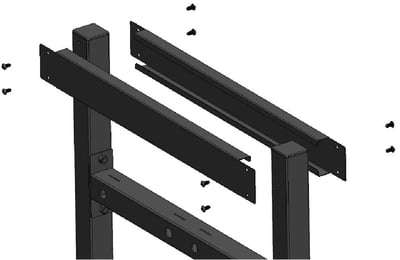

Attach the top cross sign bar to both sides of the uprights using (4) 1/4-20 x 3/4” thread cutting screws per side.

Fully tighten. Return to Step 04 and fully tighten the cross supports.

Step 06

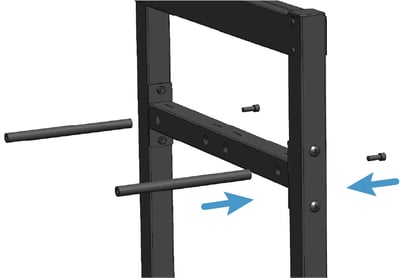

Insert the mat hanging rods into the cross member. The rod will insert halfway into the cross member. From the opposite side attach the rods using one 3/8 x 1” socket head cap
screw.

Use the Outermost Holes for FitnessMats, and the Innermost Holes for MobileMats

Step 07

Insert (1) 3/8”-16 X 1” long Truss Head Screws and (1) washer spacer into the ends of the (4) mat hanging rods.

Fully tighten.
