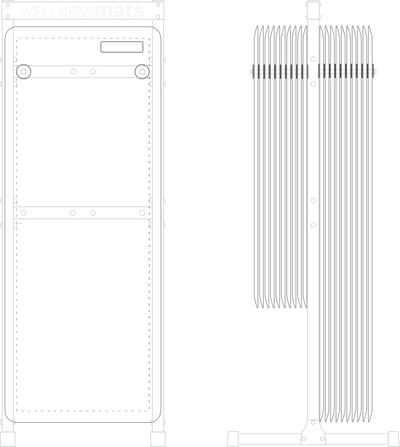

Back-to-Back Station Assembly Instructions

Download PDF Instructions

Before you Begin

Tools Required

Allen Key (Included)

Phillips Head Screwdriver (Not Included)

Parts List

Assembly Instructions

Step 01

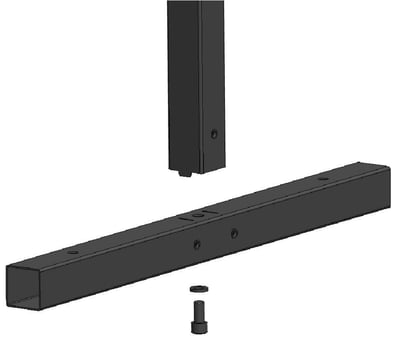

Insert the upright into the cooresponding slots on the base tube. Once inserted, thread in (1) 1/2”-13 x 1” socket head screw and lock washer.

Optionally, apply a couple drops of thread lock on the screw. Do not fully tighten.

Repeat for other side.

Step 02

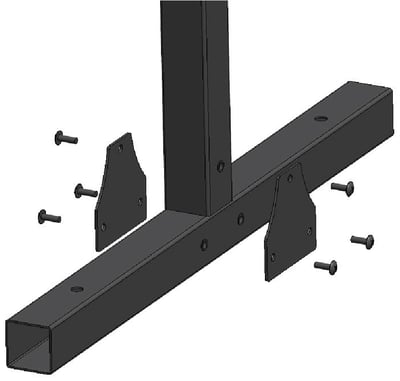

Attach the side gusset plates to the upright/base assembly. Use (6) 1/4-20 x 3/4” Philips truss head screws, three on each side.

Do not fully tighten. Go back to Step 01 and fully tighten, then fully tighten the screws in Step 02.

Repeat for other side.

Step 03

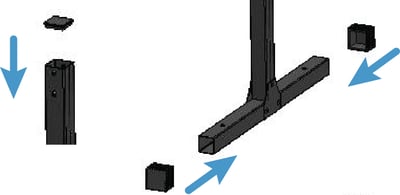

Install the caps on the end of the upright and base tubes.

Step 04

Bolt the cross supports in joining the two uprights using (4) 3/8”-16 x 2-1/2” philips truss head screws and (4) nylock nuts.

Do this for both cross supports.

Do not fully tighten.

Step 05

Attach the top cross sign bar to both sides of the uprights using (4) 1/4-20 x 3/4” thread cutting screws per side.

Fully tighten. Return to Step 04 and fully tighten the cross supports.

Step 06

Rods Adjoing Each Other*:

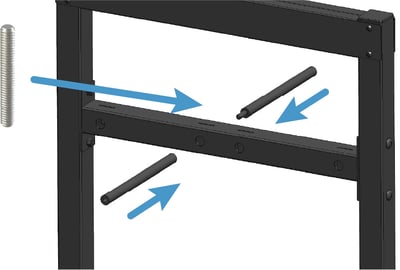

Thread the 3/8” x 1-3/4” threaded insert into the end of one of the mat hanger rods. Insert the rod with the threaded insert into one of the holes in the cross bar. From the opposite side insert a rod with no threaded insert. Thread the two rods together and tighten.

*Use if each side of the station holds the same kind of mats.



Rods on One Side**:

Insert the mat hanging rods into the cross member. The rod will insert halfway into the cross member. From the opposite side attach the rods using one 3/8 x 1” socket head cap
screw.

**Use if each side of the station holds different kinds of mats.

Step 07

Insert (1) 3/8”-16 X 3/4” long Truss Head Screws and (1) washer spacer into the ends of the (4) mat hanging rods.

Fully tighten.

Your Station is now ready to use!
